Seven Sustainability Projects: Heat Recovery

Overview:

Reducing energy costs and pollution emissions involves many areas within an industrial facility.  My studies have found seven (7) key (or common) areas where low cost practical projects can be implemented.  Combined, these projects provide savings exceeding 10% of the annual energy spend with an average payback of less than one year. This article will focus on the opportunities for using waste heat sources to supplement winter building heat.



Seven Key Sustainability Projects

1. Metering 5. Lighting
2. Demand Control 6. Heat Recovery
3. HVAC Optimization 7. Project Implementation
4. Compressed Air



The Big Picture

Heat recovery opportunities have resulted in the largest amount of savings of our common projects.  It is not the easiest type of project to implement but the amount of savings and the reduction of emissions makes this project very worthwhile.
The first question I ask in workshops is:  What is the purpose of the cooling tower located outside of your plant?  The answer:  To remove waste heat.   Second question:  Does it make sense to use a system to remove heat from your plant and then use expensive natural gas to provide heat for makeup air?



Cooling Tower    Dry Cooler

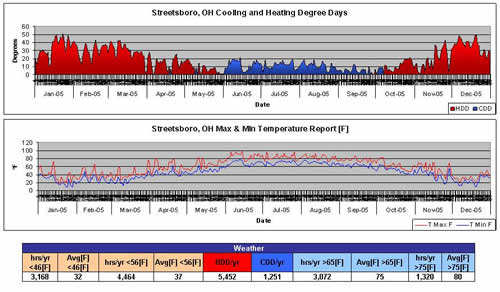

Many times I usually get the response:  The low grade heat from the coolant loop is not sufficient to provide the heat we need for our factory.  My answer:  Is the coolant loop temperature >10 degrees warmer than the outside winter air temperature?  Then warming the incoming air will reduce the heating load.  Look at this table of weather data from Ohio.  There are 4,000 hours where the average temperature is less than 37 degrees!

Weather Chart

Project Review

Let’s begin the review of this project.  Symptoms which can help identify the opportunities for this project include:

  1. The facility has sources of waste heat such as cooling towers or furnace or equipment exhaust.
  2. The facility has a large amount of air exchange such as exhaust hoods, filtration systems, ceiling or wall exhaust fans.
  3. Winter heating is required such as natural gas forced air, steam, or hot water systems.

Air-cooled Air Compressors

One of the simplest projects to get waste heat is from an air cooled compressor.  This is a common project but I continue to find plants where this source of free heat is not being utilized.
Insert Figure 4 Air Cooled Compressor Heat Recovery
A key to the success of this project is to be sure to use outside makeup air for the intake and discharge the warmed air into the ceiling area of the facility, not directly blowing on an individual.
To calculate the value of this free heat use this simple formula:



.





Coolant Loop of an Injection Molder

Another method to recover waste heat is from the coolant loop.  By intercepting the water at its warmest point before it arrives to the cooling tower and passing it through a radiator the heat in the water can be used to provide warmed make up air.

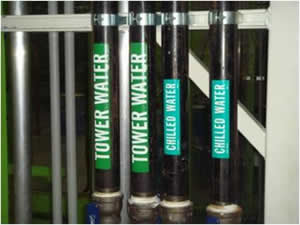

This photo shows the coolant water from an injection molding machine.  The thermal image shows the temperature of the water.  As you can see the temperature of the coolant water is significantly above the outside air temperature in the winter.



Injection Mold Coolant    Injection Mold Coolant Thermal



Heat Wasters

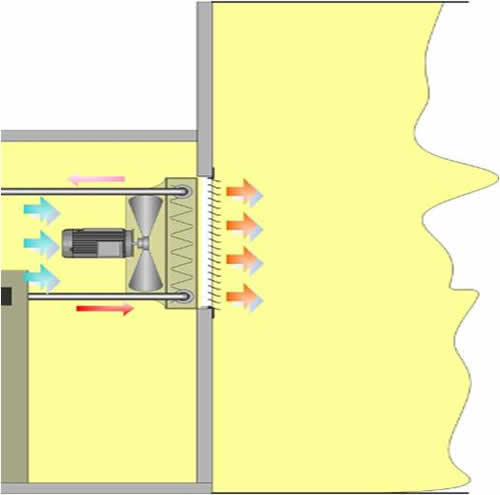

The next diagram and shows a typical installation drawing.  As with the air cooled compressor it is important that this system be set up to bring in outside makeup air and then exhaust the air into the ceiling area of the facility.



Water to Air Heat Exchanger

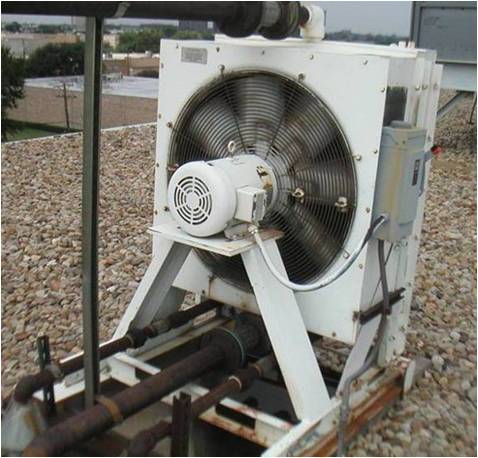

Here is a photo of what I call a “Heat Waster”.  This is exactly the type of unit that could have the discharge air ducted into the plant during the winter for free heat.



Water to Air Heat Exchanger



Here is the formula that can help to determine the value of heat available.



.



Many plants have been able to reduce their winter heat loads using this concept.  Many, even in Michigan and Wisconsin have been able to eliminate the need for natural gas heat during production hours.

I have found a company that supplies this type of heat recovery device along with some electronic measurement equipment which provides details of the amount of energy and savings that is being recovered from the coolant water.  (www.amsenergy.com) This 100 gpm radiator unit with  a metering system can cost around $25 to $30,000.



Win-Win "Combining heat recovery projects and the HVAC projects described in previous articles creates a combination where you can significantly reduce winter heat costs." - Thomas Mort, CEM



Free Cooling

Another area to find savings is called “free cooling”.  The concept of “free cooling” is that when the outside temperature is more than 10 degrees below the required coolant temperature the electric chiller can be bypassed and the cooling tower can be used to provide the cooling with a much lower energy use.  Many facilities, especially those with injection molding processes use electric chillers to cool molds and hydraulics.  A common temperature for the cooling loop ranges from 55 to 75 degrees.  Refer to the chart above and you can see there were more than 3,000 hours with an average temperature of 32 degrees in the Ohio.

This one line diagram shows how this type of system is configured.



Free Cooling DiagramFree Cooling Picture

Calculating the savings is based upon the following formula.

.

Free Cooling projects can often be combined with heat recovery projects and allow using much of the same equipment and getting two types of savings, electric from shutting down an electric chiller, and gas from reducing the load on the makeup air heating units.

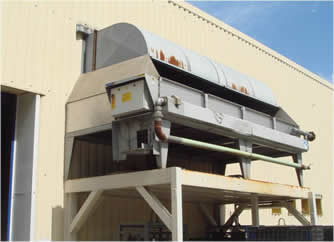

Free Cooling and Free Heating



Summary

Combining heat recovery projects together with HVAC projects described in the earlier article makes a combination where you can significantly reduce winter heat costs and have projects meeting our target of 1 year or less.
