Pneumatic and Vacuum Energy Optimization in OEM Machines

Green Leaf

The push to achieve reductions in energy consumption has been a significant global trend in recent years. Many companies offer incentives to employees to reduce cost and achieve higher energy efficiency. In some regions of the U.S., companies can profit from rebates given by electric power suppliers for reductions in compressed air usage.

Machine builders aiming to improve the energy efficiency of their machines tend to focus on using energy media other than pneumatics (typically electro-mechanical or hydraulic) since pneumatics, as traditionally applied, is viewed by some as inefficient due to factors like leakage and over-pressurization (i.e.: supplying a higher pressure in an actuator to accomplish a task which is endemic in practice). But they shouldn't, with its low cost of ownership, pneumatics when properly used remains a viable and many times preferable energy source for a given application. When generating and using compressed air, it's true that there are many places in the system where energy can be lost, however targeted measures within a comprehensive energy saving concept can prevent these losses and significantly reduce energy consumption at the machine level.

Consider the following tactics to avoid dead volumes and optimize the use of compressed air:



Bigger Not Always Better

On new machine applications, correct component dimensions are a great start to obtain optimal energy usage. With pneumatic components, bigger doesn’t mean better when over-dimensioning leads to unnecessarily high air consumption. It is common practice to assume "when in doubt, go one size bigger," or to re-use designs that were selected and worked on previous projects even though they may be overkill in terms of space and weight on the machine. This causes avoidably high air consumption and costs more to purchase and operate, plus many times it simultaneously increases the efficiency of the application.

For example, reducing cylinder bore sizes helps to save air volume. Some pneumatic component manufacturers make it easy by providing online configuration tools, calculation programs, and energy saving calculators to help determine what component dimensions are needed for the application.

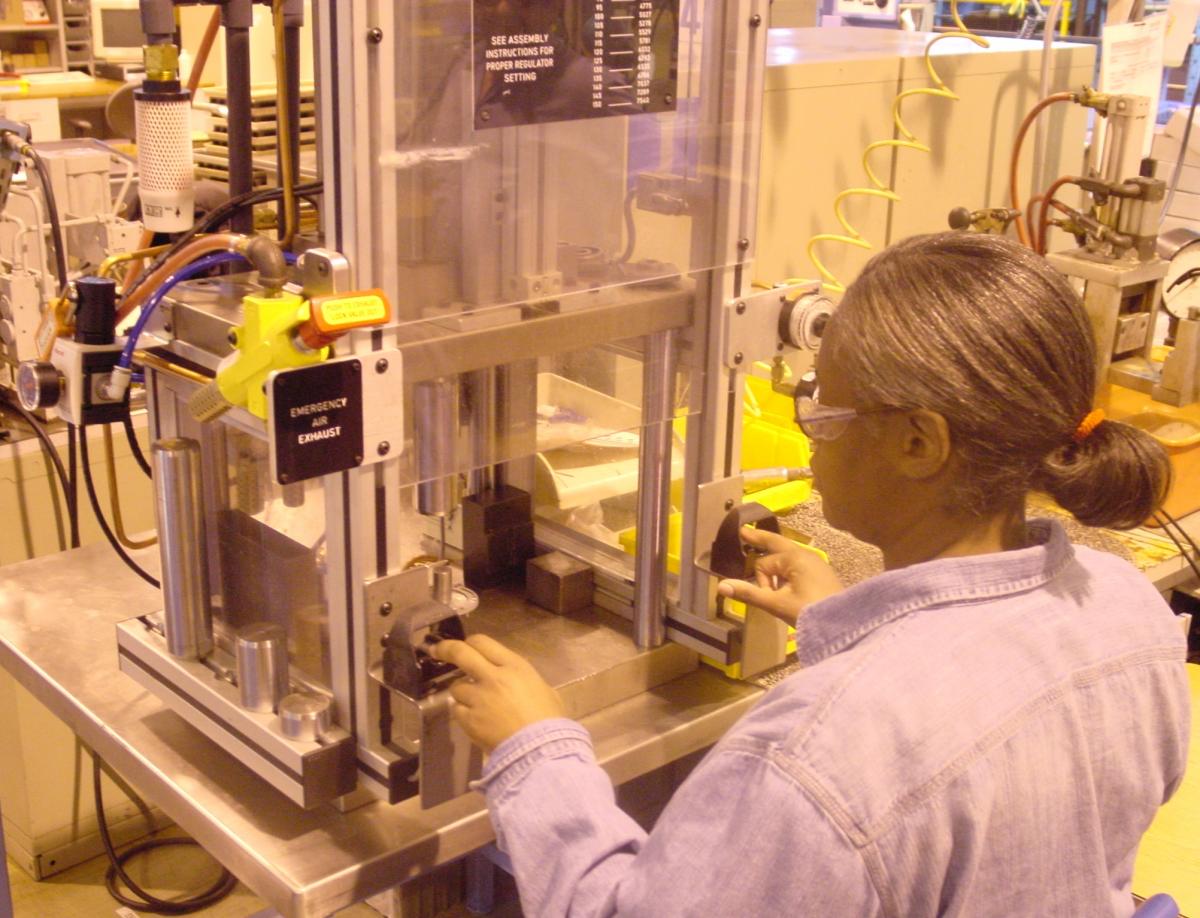

Press

When generating and using compressed air in industrial machines, targeted measures within a comprehensive energy saving concept can significantly improve energy efficiency at the machine level.

In one lumber industry application, a sawmill machine's output increased 13 percent by simply reducing the size of the pneumatics used on the sorter gates of the machine. The cylinder bore was reduced from 3.25" to 2", ½" air valves were reduced to ¼", and pressure was reduced from 100 psi to 60 psi. With these seemingly minor alterations, the company effectively increased its production speed, and achieved energy savings of 75 percent on the machine.

What about OEMs that build standard machines and sell to a variety of end-users? In order to mass-produce a standard machine, it needs to be designed and sized to accommodate the end-user with the lowest available pressure. This usually means specifying larger, more expensive components, resulting in increased air consumption. This issue can partially be solved by ensuring that the supply pressure to the machine is regulated down to the design pressure level. It is common for operators to increase supply pressure on regulators in the hope of improving performance but this ends up costing the end-user significant amounts of money in operating costs for no actual benefit if the components were sized correctly. It is important to monitor machine system pressure to ensure that it is within both a minimum AND a maximum value to avoid energy waste.



Pressure Regulation – Use Only What is Required

Best practices of lean manufacturing call for the elimination of any waste that does not add value to the product or process at hand. With pneumatics, energy is frequently wasted in this manner when too much pressure is applied for tasks that do not require that equivalent level of force. This can be overcome by using pressure regulators in pneumatic cylinders to control exactly when to exert energy and when to conserve it. By applying the exact amount of pressure needed for each task, machines can realize energy savings of up to 40 percent in many cases. It is important to note that pressure regulators installed between a valve and cylinder are capable of operating with “reverse-flow” which are becoming increasingly common and lower in cost- usually much more economical and easier to install than traditional sandwich pressure regulators. Many standard in-line pressure regulators do not have this functionality and in such cases a check-valve is required in parallel to accommodate the reverse flow.

In many applications, there is either a “push” or “pull” load but not both. Most often, the same pressure is used for both the “push” and “pull” strokes which is extremely inefficient.

In one application example, a pneumatic cylinder was being used in a press-fit operation to perform an assembly task. The cylinder required 100 psi pressure to perform the press operation, and 100 psi was also applied to the retract stroke. However, the retract function only required <10 psi pressure to accomplish the same task. By adding a pressure regulator between the valve and cylinder port, the retract pressure was reduced to 10 psi – a 90 percent reduction - resulting in a significant drop in energy consumption for the press-fit operation. In total, the machine attained 38 percent energy savings per cycle, and ROI of the components was approximately 2,100 cycles.

Typical machine tasks that could benefit significantly from non-load stroke pressure regulation include press-fit processes, and applications that utilize rodless cylinders or lifting cylinders, such as automotive assembly elevators. In general, the larger the cylinder the larger the efficiency gain, and the key characteristic to be on the lookout for is where there is a sizeable difference in the force required for each stroke direction.

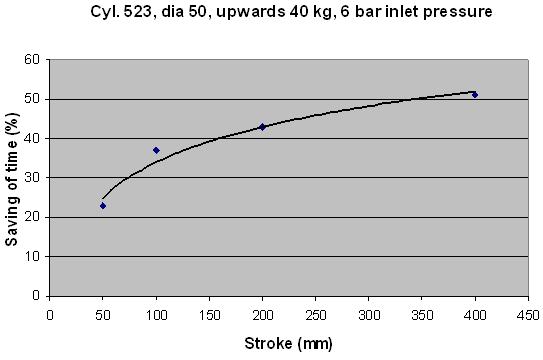

Cycle Time Reduction
Cycle time reduction for different strokes: 2 bar compared to 6 bar as “no-load” pressure

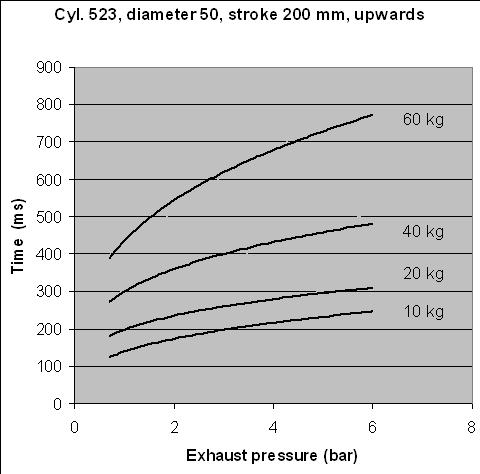

Stroke Time
Stroke time with different “no-load” pressures.


Regenerative Circuits

For some applications that require pressure for a load in both the "push" and "pull" stroke directions, the implementation of a regenerative air savings system can produce an air savings of up to 50 percent. Rather than installing a pressure regulator to cut air consumption (such as in the example above), instead the air in the load side of the cylinder is recirculated back into the other side of the cylinder to do work.

An example of where this can be applied is on crust breaking in aluminum processing. Large cylinders are mounted vertically with the rods facing down. Due to the weight of the tooling, high air pressure is required to retract the cylinder rods. High pressure is also required to extend the cylinders even though they are assisted by gravity. The high pressure is needed towards the end of their stroke to create a force to break a crust. The same characteristics apply in some clamping applications where the high force is only required towards the end of the working stroke. Regenerative valve circuits divert air being exhausted from the cylinder stroke that has gravity assist and it is used to charge the opposite end of the same cylinder when out-stroking.

Regenerative Valve
Regenerative Valve circuits divert air being exhausted from the cylinder stroke and use it to charge the opposite end of the same cylinder when out-stroking.


Optimize Vacuum Applications

Machine applications that use vacuum generators (or ejectors) typically consume much more energy than is necessary to perform the material handling task at hand. In conventional systems, vacuum generators are energized by a solenoid valve that supplies compressed air, and vacuum cups of various profiles and materials come into contact with the product itself. As long as vacuum force is applied to hold the component at the vacuum cup, air is being consumed by the vacuum generator. Since vacuum cups are prone to wear over time, vacuum generators tend to be over-sized to accommodate this and therefore consume a higher amounts of compressed air, leading to increased operating cost of the equipment and greater noise in the machine.

To remedy this, consider retrofitting the machine with a vacuum generator that has an automatic air-savings option. Vacuum generators with air-savings, such as the ECS series from AVENTICS, monitor vacuum levels with an integrated sensor. Once the generator is switched on, the vacuum valve remains active only until the preset vacuum value is reached. As long as the vacuum value lies within the programmable hysteresis range, the valve automatically de-energizes and remains closed, consuming no compressed air. If the vacuum drops below the preset limit value (due to a leak or other disruption), the solenoid valve is energized again until the preset vacuum value is reached.

Optimizing vacuum applications with air-savings control can greatly reduce air consumption and operating cost. Vacuum generators with air-saving functions can be easily installed or retrofitted to improve efficiency. Other tangible benefits include significant noise reduction on equipment due to increased off-time of the vacuum valve. Furthermore, the frequency of vacuum sensor activation can be used as an indicator of both wear and overall efficiency of the system.

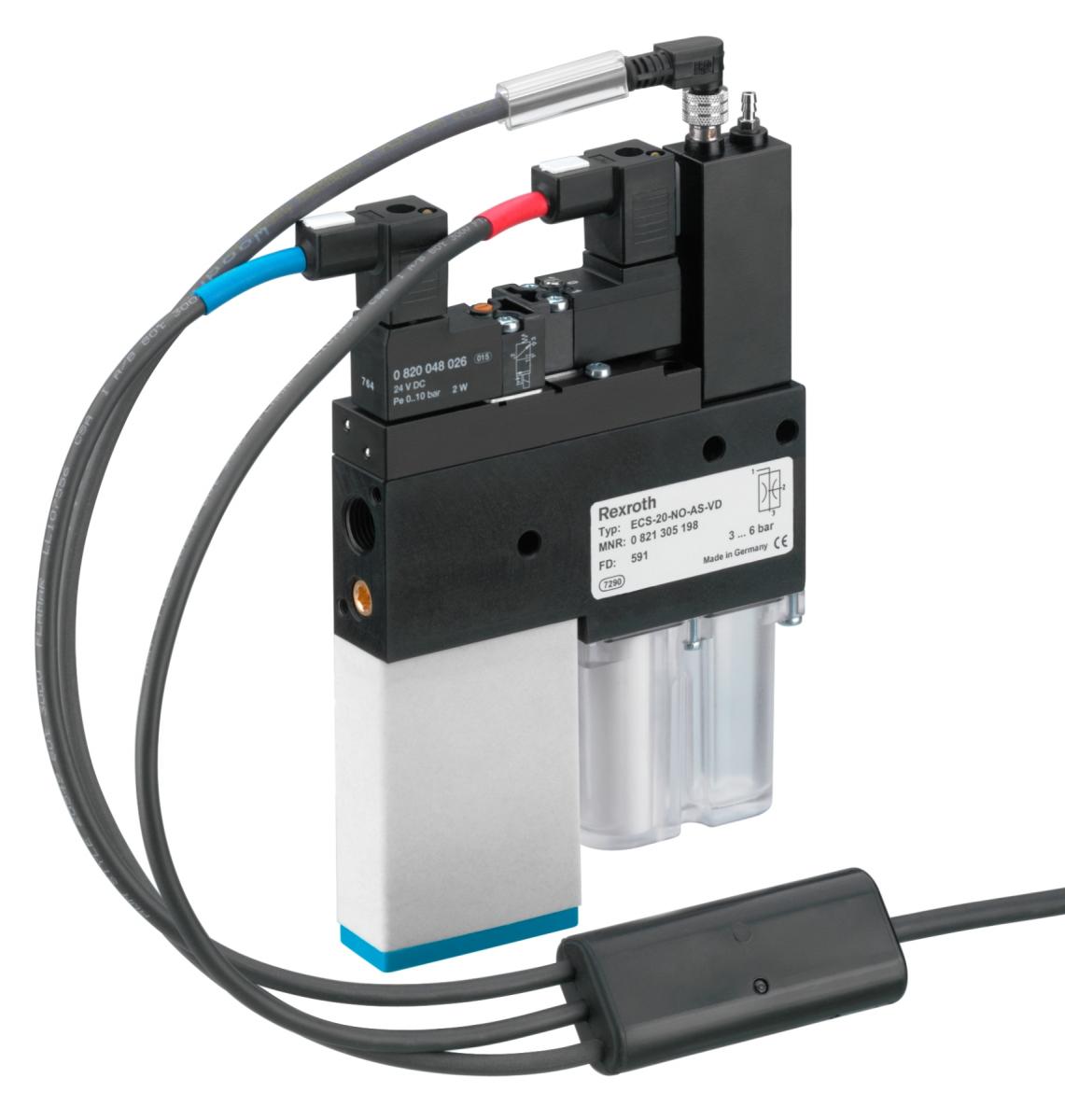

Vacuum Generators
Look for vacuum generators with air-savings options, which have integrated sensors to monitor vacuum levels and greatly reduce air consumption and operating costs.


Minimize Leaks, Control "Off-Duty" Air Pressure

Leaks are costly. For end users seeking to improve the efficiency of the pneumatics on their machines, the low-hanging fruit is finding and fixing leaks.

Leakage can commonly be attributed to factors such as valve design and the deterioration of seals. Some valve designs, such as lapped spool valves with metal sealing, have inherent internal leakage up to 700cc/min even when brand new. The leak is constant as long as there is air supplied to the valve. Switching to comparable valves with soft seals instead of metal seals can cut the allowable leak limit to between 10 and 30cc/min. In general, selecting the right components is very important. For example, many brands and models of rodless cylinders are known to have leakage issues, while there are alternative ones available that perform much more efficiently.

Leakage can also be caused by chemicals in the air system that are incompatible with industrial elastomeric seals. The first component to fail due to incompatible chemicals in the air supply is the pressure regulator. If deterioration of elastometric Buna seals occurs, consider installing an active carbon filter bed or lubricator, or switching to devices with non-Buna seals such as HNBR, Viton, Teflon, hard sealing, or polyurethane.

The implementation of automatic air reduction control is another means of significantly increasing machine efficiency. Most existing machine installations have no automatic means of shutting off air to machines when not in use, and having maintenance personnel individually turn off air to specific machines is too cumbersome. Some machines may require pressure for certain functions to be supplied even after the machine is turned off and there is no production (examples include air bearings, air gauging and cleaning).  Frequently however, these functions can be satisfied with greatly reduced supply pressure or with pressure for a limited time period. If a plant has two shifts/five days a week, an automatic air reduction control package can be added to automatically reduce the supply pressure during the hours that the plant is not in operation. In the event that higher pressure is required during off-hours, the system can be overridden.



Decentralize the Valving

Centralized valve manifolds not only have the reputation of being cumbersome and using long air lines, they also consume a lot of energy. Small, decentralized valve units with competence and intelligence at the site of the application offer greater efficiency. The concentration of pneumatic functions prevents pressure losses through long lines from the control cabinet to the pneumatic drive. Tubing connections can be significantly reduced (by 50 percent) by using valve/actuator units, resulting in an energy saving of 35 percent.

Manufacturers of pneumatic components now offer smaller, lighter, chemical-resistant valves – thanks to special polymers - that can be mounted right next to (or on) the actuator. In addition to improved valve designs with higher flows in a smaller envelope size, some manufacturers offer dual 3/2 valves for valve manifolds, allowing two valve functions in one slot to save space, weight and components cost. This direct connection/close proximity of valves and cylinders eliminate/reduce pressure losses, which arise from long connection lines. Decentralization of the system typically yields faster response times, and higher cycle frequencies.

Modern air valves and manifolds are available with IP69K (high-pressure washdown) protection and sanitary design with materials that are suitable for food processing. This eliminates the need for the traditional locating of pneumatic valves in remote stainless steel enclosures with long tubes in between. The energy savings is gained by the elimination of over 50% the tubes and improved response time due to the valve being located where the actual work is being done.

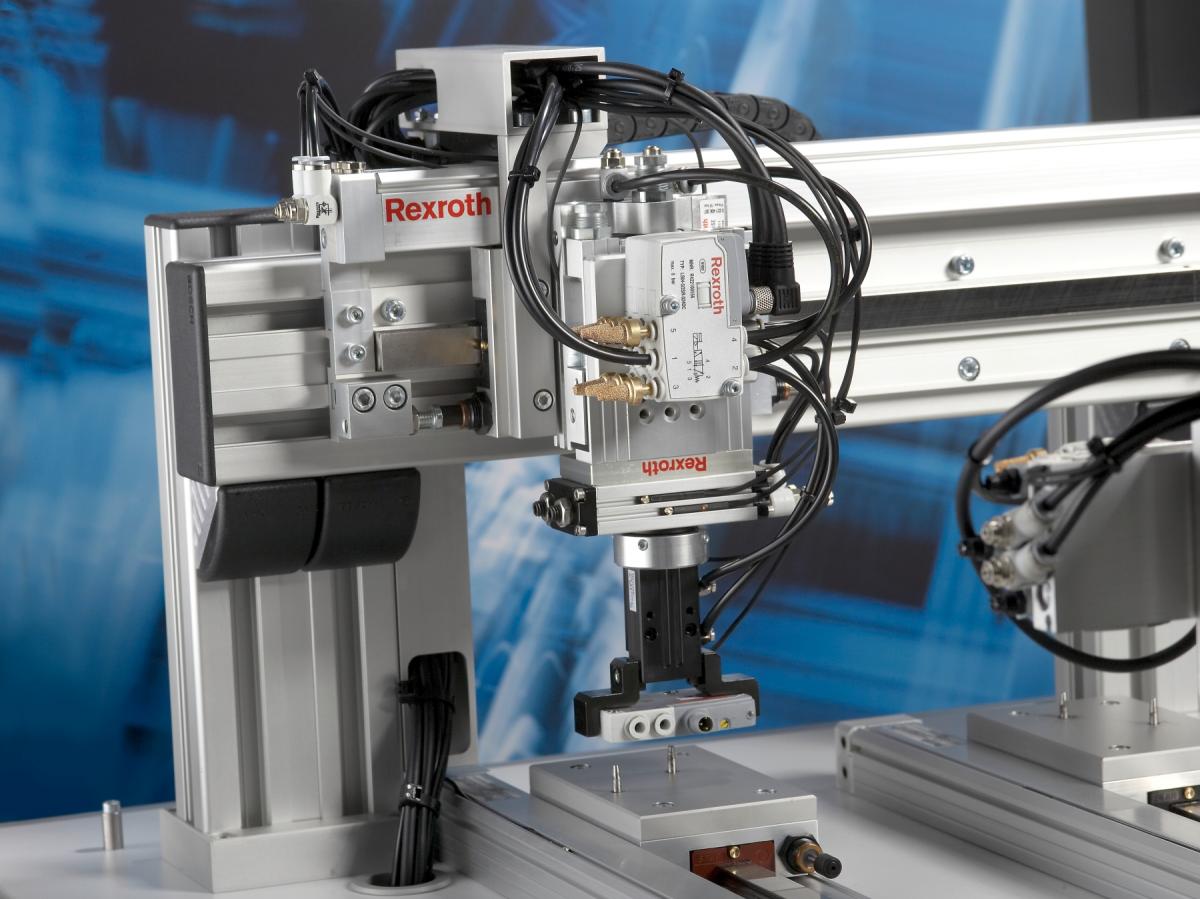

Smaller Valves

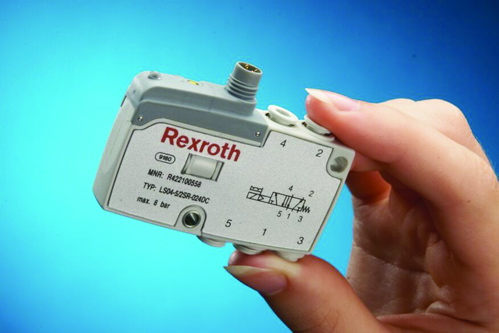

LS04 Valve
Special polymers allow for smaller, lighter, chemical-resistant valves – like the LS04 valve from Bosch Rexroth - that can be mounted right next to the actuator.


The Bottom Line

On a plant-wide level, steps to achieve greater energy efficiency can certainly be implemented, but end users should work with their OEMs to consider what steps can be taken at the machine level. Energy costs comprise more than half the total cost of ownership in pneumatics today, and a constructive evaluation of pneumatic applications will quickly pay off. Every application is different, and the overall machine concept and types of components used influence the potential for energy savings. Pneumatics should still be considered in the strategy to achieve greater energy efficiency in industrial machinery. Following the practices suggested here, pneumatics remains an important cost and energy efficient automation solution.
